| Luogo di origine: | Shenzhen, Cina |
|---|---|
| Marca: | J&R |
| Certificazione: | CE, FCC, RoHS, ISO9001 |
| Numero di modello: | JR105-FK |
| Quantità di ordine minimo: | 1 unità |
| Prezzo: | US$399~US$599 |
| Imballaggi particolari: | Dimensione dell'unità: dimensione del cartone 339*246*126 (millimetro): materiali da imballaggio 200 |
| Tempi di consegna: | 3-5 giorni lavorativi |
| Termini di pagamento: | L/C, T/T, Western Union |
| Capacità di alimentazione: | 3000 insiemi al mese |
| Materiale: | Lega di alluminio | Funzione: | SOS |
|---|---|---|---|
| Chip principale: | Audiocodec | Pacchetto: | Cotone della perla, cartone |
| Modello: | Analogo SIP/GSM 3G/4G | Montaggio: | La parete /Pillar ha montato |
| Valutazione di protezione dell'ingresso: | IP66-IP67 | Tastiera piena: | Sì |
| Copertura della porta: | Facoltativo | Temperatura: | -30°C a +65°C |
| OEM: | Sì | Garanzia: | 2 anni |
| Feature1: | Anti vandalo | Feature2: | LCD |
| Evidenziare: | Telefono industriale all'aperto della lega di alluminio,telefono industriale all'aperto di GSM 3G,telefono della SORSATA di IP67 VOIP |
||
✾ Product Description ✾

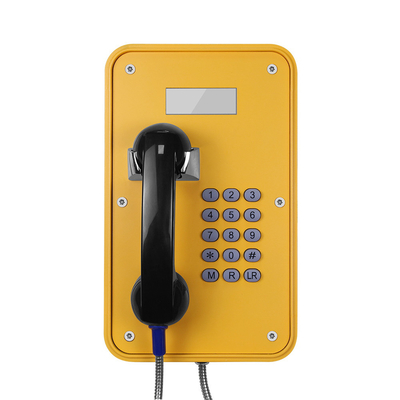

Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
| Relative humidity high | 93% R.H at 40°C (non condensing) |
|---|---|
| Casing Material | Die cast aluminium, epoxy powder coated |
| Handset Material | Cycoloy with stainless steel spiral cord |
| Keypad | Rubber Keypad |
| Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 60,000 hours using |
| Weight |
Up to 5 kg depending on option |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Analogue Version | |
| Power Supply | Drawn from telephone line |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption |
-Idle:1.5W -Active:1.8W
|
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume |
- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
|
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W
|
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
|
Frequency |
A version: |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
✾ Technical Specification ✾
Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
✾ Features ✾
Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
❉ Standard Analogue phone/VoIP SIP phone with LCD display
❉ Vandal resistant handset and cord
❉ Weather proof protection to IP66
❉ Full keypad with memory
❉ Wall mounting or Pole mounitng, Simple installation
❉ Inductive coupler fitted as standard for hard of hearing
✾ Packing & Delivery ✾
Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
| Unit size | 339*246*126 (mm) |
|---|---|
| Carton size | 200*300*440 (mm) |
| Packaging materials | pearl cotton, carton |
| Net weight | 6.2 KG |
| Gross weight | 7 KG |
| Port | Shenzhen | ||||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Pieces) | 1-10 | 11-50 | 51-200 | >200 |
| Est. Time(days) | 1 | 10 | 20 | To be negotiated | |
✾ Our Company ✾
Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
✾ FAQ ✾
Standard Keypad Outdoor Industrial Telephone, IP67 VOIP/SIP Telephone With LED Display
✂┄┄┈┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄
Q: Do you have any MOQ limit for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Low MOQ, 1pc is available
Q: What about the lead time for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.
And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q:Will you do OEM or Customzied work for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Yes. Any OEM/ODM/Customzied work are welcomed!!! Pls send your email to us about it.
Q: How is your after sell service?
A: 2 years warranty time, 7*24 hours online professional technical support!!!
If you have more questions, Pls kindly contact with us, Thank you.
