| Luogo di origine: | Shenzhen, Cina |
|---|---|
| Marca: | J&R |
| Certificazione: | CE, FCC, RoHS, ISO9001 |
| Numero di modello: | JR210-SC |
| Quantità di ordine minimo: | 1 pezzo |
| Prezzo: | US$249-US$359 |
| Imballaggi particolari: | Imballaggio standard di J&R, cotone della perla, cartone |
| Tempi di consegna: | 3-7 giorni lavorativi dopo il pagamento |
| Termini di pagamento: | L/C, T/T, Western Union, Paypal |
| Capacità di alimentazione: | 10000PCS al mese |
| dimensione: | 300*180*161 (millimetro) | Colore: | Rosso o su misura |
|---|---|---|---|
| Materiale: | Acciaio laminato a freddo | Funzione: | Comunicazione |
| Installazione: | montaggio della parete | Volume della soneria: | 90~95dB (A) ad una distanza di 1 m. |
| Temperatura: | Funzionamento: -30°C a +65°C | Valutazione di protezione dell'ingresso: | IP54-IP65 |
| Garanzia: | 2 anni | Peso netto: | 4 chilogrammi |
| Evidenziare: | Telefono di emergenza del quadrante automatico SIP2.0,Telefono di emergenza del quadrante automatico 65VDC,Telefono all'aperto di emergenza di ISO9001 PoE |
||
﹄Product Description﹃

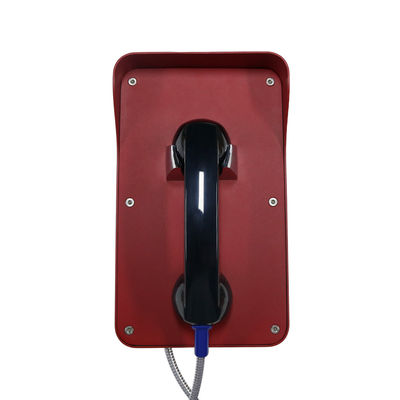

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),
Unit size:300*180*161(mm)
Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12VDC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
﹄Features﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
﹄Applications﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
JR210-SC Hotline Telephone for Taxi Server more commonly used in parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
﹄Customised Accessories﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
