| Luogo di origine: | Shenzhen, Guangdong, Cina |
|---|---|
| Marca: | J&R |
| Certificazione: | CE, FCC, RoSH, ISO9001 |
| Numero di modello: | JR202-FK |
| Quantità di ordine minimo: | 1 |
| Prezzo: | US$119 - US$250 |
| Imballaggi particolari: | Cotone della perla, cartone |
| Tempi di consegna: | 3-5 giorni lavorativi dopo il pagamento |
| Termini di pagamento: | L/C, T/T, Western Union, Paypal |
| Capacità di alimentazione: | 3000 insiemi al mese |
| Materiale: | Acciaio inossidabile d'acciaio o laminato a freddo | Colore: | Grigio, giallo, rosso o personalizzazione |
|---|---|---|---|
| Protezione dell'ingresso: | IP55-IP65 | Microtelefono: | Materiale dell'ABS con cavo corazzato |
| Dimensione: | 247 *130 *132 (millimetri) | Alimentato: | linea telefonica alimentata o DC12V |
| Versione: | Analogue/SIP/GSM | Garanzia: | 2 anni |
| Evidenziare: | Anti telefono di emergenza del microtelefono del vandalo,Il CRS ha composto a mano il telefono di emergenza,Telefono fissato al muro della prova del vandalo |
||

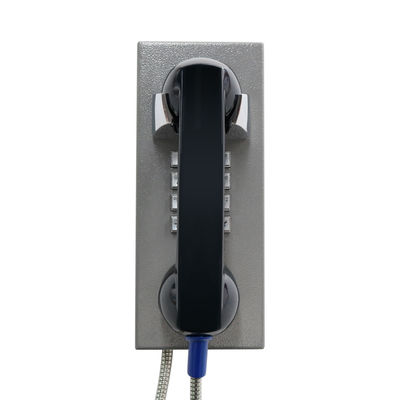

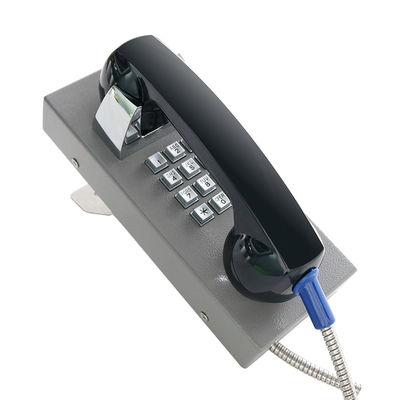

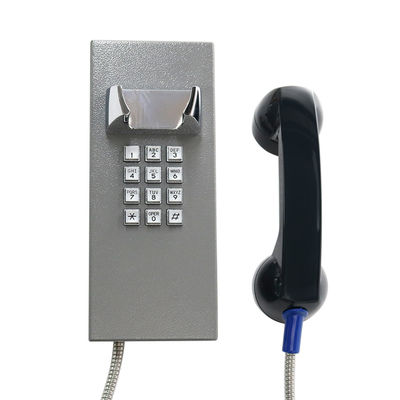

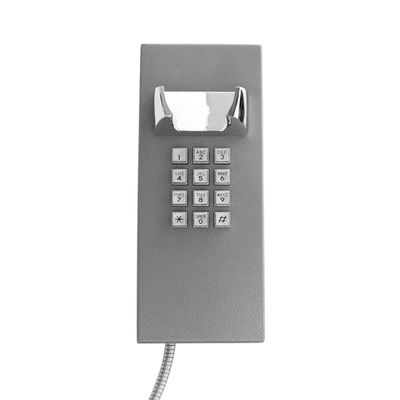

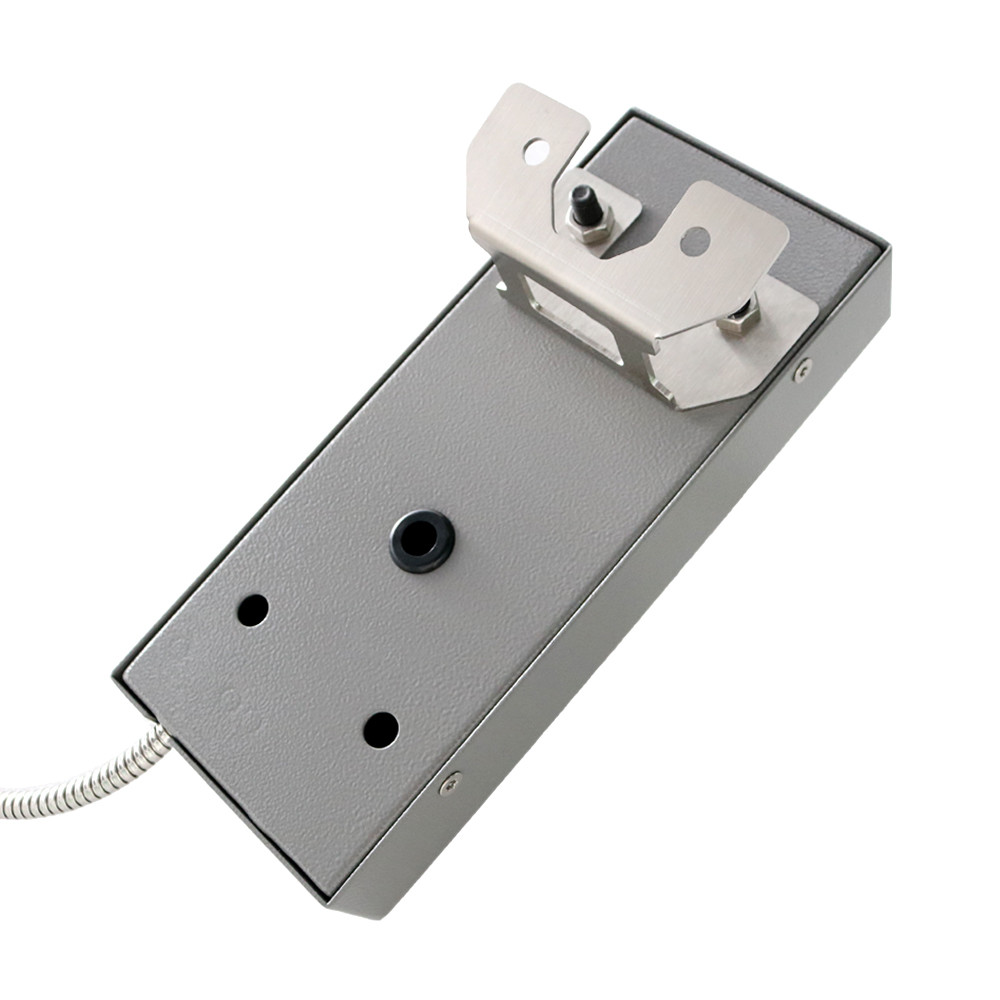

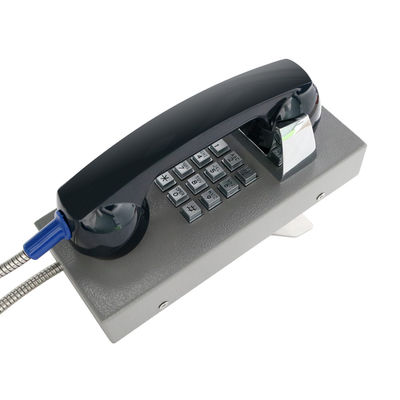

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
JR202-FK Vandal Resistant Handset Telephone ihas the characteristics of simple installation, easy handle, stable operation and strong compatibility. Phone accessories and phone shell color can be customized.
The telephone adopts stainless steel panel with strong vandal proof feature. The handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials.
| Casing Material | Robust Cold-rolled steel body (CRS) |
| Colors |
Color Optional,Gray as standard |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 85 dBA at 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Applications
Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
JR202-FK PSTN Wholesale Telephone With Keypad is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.
Packing & Delivery
Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
| Unit Size | 240 *100 *106 (mm) |
| Carton Size | 340 *235 *165 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.7 KG |
| Gross Weight | 3 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Customised Accessories
Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
Our Company
Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone
J&R Technology has long-term cooperated with many well-known international companies to steadily promote product development and innovation. The telephones like industrial telephones, weatherproof telephones and explosion-proof telephones and many other products are adopted by large mines, municipal projects and outdoor scenic spots.
